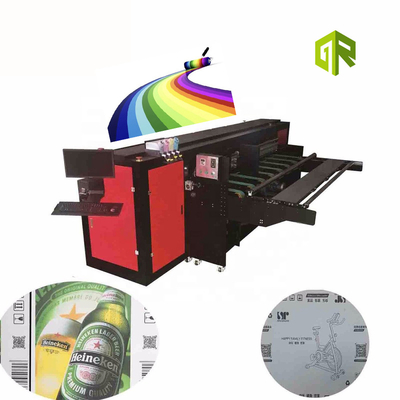

Hot sale high resolut corrugated box digital printer for printing machine
Corrugated box inkjet printer with auto feeder is mainly used in corrugated paperboard printing. It installed six pieces of digital printing heads. It is CMYK 4 colors water based ink system.
Technical data
|
Model |
2500AF-6PH |
|
Software |
Maintop, Xprint software |
|
Picture format |
TIF, PDF, JPG |
|
Printing head |
Epson |
|
The quantity of printing head |
6 heads |
|
Max printing speed |
600m2/hour |
|
Printing precision |
360 * 600DPI |
|
Printing color |
CMYK-4 colors |
|
Indoor temperature |
15-28 degree |
|
Humidity |
20%-70% |
|
Max board size |
2500x1400mm (manual 2500x4000) |
|
Min board size |
650x350mm |
|
Max printing size |
2480x1360mm |
|
The thickness of corrugated |
1.5-15mm |
|
X.Y drive |
Servo drive |
|
Operation system |
Above windows 7 |
|
Air supply |
Max 1.0Mpa |
|
Total power |
4.8KW |
|
Voltage supply |
220V, 50HZ |
|
Machine weight |
2100kgs |
|
Machine dimension |
4200x3500x1580mm |
Description:
The inkjet printing for corrugated board 2500AF-6PH is the automated feeder machine.It is the six head printing machine with computer control.
The Maintop software (RIP) is version 6.0 which support PDF,TIF and JPG format.
The feeder is the belt feeder with photo eye to detect the sheet .This system will help the operator to put the large format sheet on the feeder during setup.
The feeding hopper is the electrical control right side layer.
1. Q: What is your delivery term?
A: FOB,CIF,CFR usually.
2.Q: What is your payment?
A: T/T.30% deposit, 70% balance before delivery.
L/C. 100% at sight.
T/T and L/C, 30% TT deposit, 70% L/C.
3.Q: What is your delivery time?
A: 30-50 days usually
4.Q: What is your warranty and other terms?
A: One year machine warranty,and whole life technical support. Spare parts are free for customer in 1 year. We can send our engineer to your factory for machine installation and operator trainning if you need,Customer pay the flight tickets,meals and hotel for our engineer.
