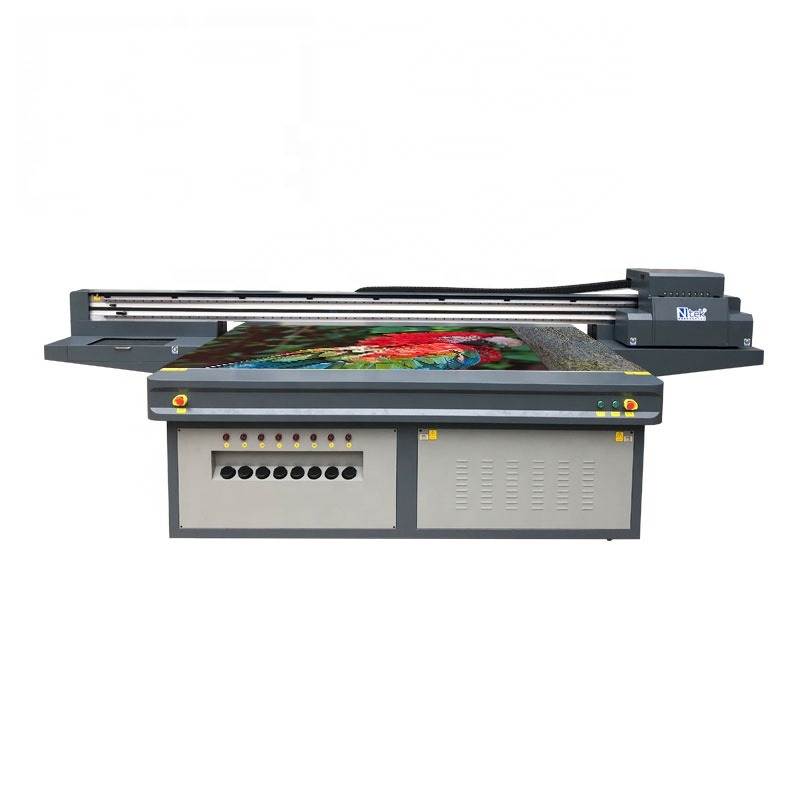

Hotels Factory Supply YC2513 UV Ceramic Glass Flatbed Printer Machine

1 Set
MOQ
$25,000.00(1 - 4 Sets) $21,000.00(5 - 9 Sets) $8,000.00(>=10 Sets)
Price
Hotels Factory Supply YC2513 UV Ceramic Glass Flatbed Printer Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Dimensions(L*W*H): L3970mm*W2100mm*H1400mm
Plate Type: Flatbed Printer
Weight: 1500 KG
Automatic Grade: Automatic
Color & Page: Multicolor
Usage: Flatbed Printer
Voltage: 220V
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Bevera
Warranty: 1 Year
Print Dimension: 2.5M*1.3M
Ink Type: UV Curable Ink
Key Selling Points: High Productivity
Marketing Type: New Product 2021
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Engine, Pump, Board
After-sales Service Provided: Engineers Available To Service Machinery Overseas
Software: Photoprint
Print Head: RICOH G5/RICOH G6/TOSHIBA/KONICA
Printing Size: 2.5m*1.3m
Printhead Arrangement: C M Y K LC LM Lc Lm W V Optional
Print Speed: 15-20sqm/hr
Printhead Number: 2-8
Life Of Printed Image: 10years(outdoor),20years(indoor)
Media Thickness: 0-100mm, Higher Can Be Customized
Keyword: Ceramic Uv Flatbed Printer
Basic Infomation
Payment & Shipping Terms
Packaging Details: Standard wooden case packaging
Product Description
Product Description

Printhead

Ricoh GEN5/Ricoh GEN6 Printhead 2-8 units optional

Image Quality

Bright picture fresh as before

Application

Advertising Industry, Furniture Industry
YC2513L UV Flatbed Printer

①UV Led Lamp imported from Korea ②Anti-static System ③Imported TAIWAN HIWIN Guide Rail
④Emergency Switch ⑤Ink Level Alarm System ⑥Large Capacity Ink Tank
⑦Universal Wheel ⑧ Industrial Printhead
Specification
Product Model
YC2513L
Printhead Type
RICOH GEN5/GEN6/KM1024I/SPT1024GS Optional
Printhead Number
3-8 heads
Ink Characteristics
UV Curing Ink (VOC Free)
Ink reservoirs
Refillable on the fly while printing/3000ml per color
LED UV Lamp
More than 30000-hours life made in Korea
Printhead arrangement
CMYK LC LM W V Optional
Printhead Cleaning System
Automatic Cleaning System
Guide Rail
TAIWAN HIWIN/THK Optional
Working Table
Hard anodized vacuuming platform
Printing Size
2500*1300mm
Print Interface
USB2.0/USD3.0/Network port
Media Thickness
0-100mm(Higher can be customized)

Print Resolution& Speed
720X600dpi
4PASS
15-33sqm/h
720X900dpi
6PASS
10-22sqm/h
720X1200dpi
8PASS
8-18sqm/h
Life of printed image
3 years(outdoor),10years(indoor)
File Format
TIFF,JPEG,Postscript,EPS,PDF etc.
RIP Software
RIPPRINT/Photoprint/ONYX Optional
Power Supply
220V 50/60Hz(10%)
Power
3100W
Operation Environment
Temperature 20 to 30 ℃,Humidity 40% to 60%
Machine Dimension
2.1*4.4*1.4mm
Packing Dimension
4.6*2.3*1.65mm
Weight
1200kg
Warranty
12 months exclude the consumables
Above specification subject to change without notice beforehand
YC2513L UV Flatbed Printer advantages:
① All steel frame structure, Which can make this printer movement stable and durable, as we know, Printing accuracy is not only determined by the printhead, but also by the physical accuracy of the machine itself.
② Applied hard anodized vacuuming platform to prevent scratches by hard materials.
③ 6 zones vacuum suction area, Easy operation and save power.
④ Imported Double Taiwan HIWIN Linear guide rail and lead screw are used for a stable and precise movement.
⑤ Double Negative pressure system，Which can ensure printer to supply ink smoothly in production process.
⑥ Automatic height measurement and material thickness measurement can save time and improve efficiency. ⑦ The printhead carriage anti-collision device can stop automatically when it touches the medium.
⑧ Ink level alarm system to remind customer to fill ink in the bottle.
⑨ Long-lasting UV LED lamp Imported from Korea, Working life more than 30000 Hours.
Product Paramenters
Machine Details
RICOH Printhead
Adopting gray level Ricoh stainless steel internal heating industry head which has high performance in speed and resolution.
Hard Anodized Vacuuming Platform
Applied hard anodized vacuuming platform to prevent scratches by hard materials.

Integral Welded Industrial Steel Frame

The frame is integrally welded with 8cm*16cm square steel to ensure that the frame structure is stable and not deformed. The platform base structure adopts a high-precision gantry milling machine.

Sectional Vacuum Suction Control Buttons

6 zones vacuum suction platform for easy operation and save energy.

Taiwan HIWIN Lead Screw

UV Flatbed printer adopt Double Taiwan HIWIN lead screw to improve the printing accuracy and the stability of the machine.

High Precision Aluminum Beam

Our uv printer is equipped with self-developed high-strength aluminum beams, using super-strength aluminum to ensure The printing accuracy is stable and the perfect output is guaranteed.
Large capacity ink tank and ink shortage alarm system
Printhead Anti-collision System
Korea UV LED LAMP
Temperature Control System
Anti-static System
Automatic Height Measurement
Adjustable Universal Wheel
Positioning Pin
Secondary Cartridge
Printing Samples
Adopt Ricoh piezoelectric Printhead
Ricoh GEN5 Printhead is an industrial printhead, with 1280 nozzles. The width of the printhead is 54.1 mm. It is a printhead specifically for industrial applications. It has fast printing speed, long life, good printing effect and strong corrosion resistance. Ricoh GEN5 print head is an eight-level gray scale print head with variable ink droplets. Therefore, its printing effect is highly restored and the colors are vivid.
CMYK+W+V All three colors at once
The use of varnish makes the product more gorgeous gloss and "high gloss" effect, not only makes the surface of the whole picture has a gloss sense, get a more exquisite printing effect, but also can better protect printing product, make the product more durable.
Wood
Glass
Mouse Pad
Ceramic Tile
Acrylic
Metal
Glass Photo
PVC
Advertising Sign
Factory
Jinan Yingcai Digital Technology Co.,Ltd
Jinan Yingcai Digital Technology Co., Ltd ( short as”Winscolor”) was established in 2015, locating in Linyi City, Shandong province, China. The independent plant covers more than 20,000 square meters, with six professional production lines to support annually sales volume. Now our printer series include UV Flatbed printer, UV Flatbed with Roll to roll printer, and UV Hybrid printer, with widespread praise and recognition by our customers, our printers are welcome more than 150 countries in Asia, Europe, Australia and Africa etc.

We strengthen technological innovation, optimize the cost of consumption, and strive to create the best quality UV digital printing machines for our customer, and some comprehensive solutions according to different demands in various industries. Winscolor uphold the concept of excellence, and continuously improve product quality, to become the most trusted brand in UV printing equipment industry, We are looking for agents from all over the world, OEM Service is available, Welcome to join us！

Ｏne Year Warranty

Important parts, warranty for one year.

Timely After-Sales Service

Support 24 hours online after- sales

Free Replacement

Within the warranty period, free replacement of damaged parts caused by quality problems.
Packing&Delivery
YC2513L UV Flatbed Printer Packing:
YC2513L uv flatbed printer Packing Details: Inner packing with stretch plastic film, and outside packing with export plywood case.
·Packing size:4600MM*2260MM*1270MM.
Customer Photos
Winscolor Customers Are All Over The World
We are looking for agents all over the world, OEM Service is available, Welcome to join us
FAQ
1. Can the printing speed be improved by adding printhead? Yes, usually adding printheads can increase the printing speed, please advise what printing speed you want to achieve, so we can check and recommend printhead number which is suitable for you.
2. How about the Maintenance and after-sales service? After you get the machine, firstly we will send you operate manual and installation videos, our engineer will teach you how to install machine by online ways, such as whatsapp/wechat/Dingtalk, whenever you have questions for machine, you can freely contact engineer. In addition, Remote guide service also be supported. 3. How long is the warranty for your machines? UV printer warranty is 12 months(except printhead and ink system, which belong to consumables) and We will provide Lifetime service for you. 4. What kinds of materials need add coating before printing? Before printing Glass, ceramic, metal, acrylic, need to add coating to add Adhesion. 5. How about the quality of your products? We are professional UV printer manufacturer for 12 years, all machines self-developed and produced, in addition,We have quality inspection process. All machines are inspected before delivery to ensure the performance and stability of the machine. So machine quality is guaranteed. 6. Can I buy ink from our local company instead of your company? Yes, but our ink have been tested many times by our printers, the ink fluency, flavor and colors have been turned out to be most suitable to our printers. 7. How soon can you deliver your machines? Usually 5-7 working days. After factory receive your deposit,will arrange to produce for you in time.
